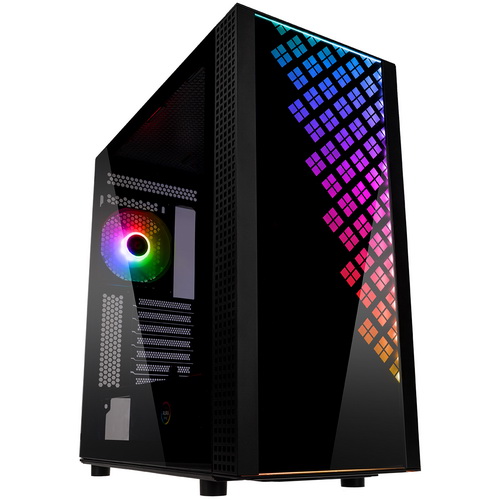

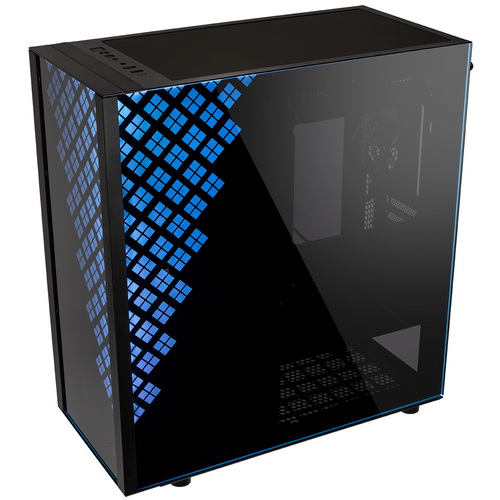

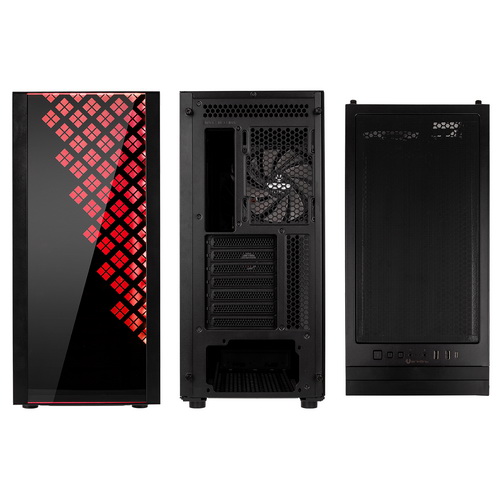

BITFENIX CASE MID.T DAWN RGB TG BLACK

Aesthetics

Fresh like the break of dawn,
BitFenix presents the one and only innovative design, Dawn TG.
The Illumination shines through the glass is like a breeze of sunlight blows
into your window in the break of dawn.
The scientific patterns are the codes concentrate the light.
The aesthetics of Dawn TG aims to bring the art of pc builds to the new era of renaissance.

Dawn TG – BitFenix.com

3 side tempered glass armed with car window security films from automotive industry

3 side superior tempered glass serve as the foundation for Dawn TG aesthetics.

All 3 side tempered glass armed with car window security films from automotive industry, provides strong and protective barriers between you and the glass in the event of an accident.

Designed with ultra clear glass, the superior glass with high purity applied mainly in automotive industry and architecture, the glass panels of Dawn TG transmit magnificent illumination through the scientific patterns, the codes of light concentration.

The special care of well-polished treatments on ultra clear glass panels soothe the sharp edges and provide another level of protection .



The totality of ARGB/RGB illumination Major motherboard brands compatible

The ARGB illumination of Dawn TG and the pre-installed BitFenix Spectre ARGB fan at the rear are compatible with Asus AURA SYNC, MSI Mystic Light, Gigabyte RGB Fusion 2.0 and Asrock Poloychrome SYNC



The totality of ARGB/RGB illumination- controlled by built in ARGB/RGB controller on Dawn TG

Please kindly note that the controller and Motherbooard are two independent control methods, please don’t connect the controller to motherboard

The totality of ARGB/RGB illumination – synchronized with all Alchemy ARGB/RGB accessories & Spectre ARGB/RGB fans

The totality of PC build aesthetics has been the core theme of BitFenix design. The illumination of Dawn TG can be synchronized, same as Enso and Saber cases, with all Alchemy ARGB/RGB accessories & Spectre ARGB/RGB fans

The totality of ARGB/RGB illumination

Front I/O with USB 3.1 Gen 2 Type C

Support up to Extended-ATX form factor 275mm

Thermal capability with 1 x Spectre 120mm ARGB fan pre-installed at the rear and 2 x Spectre 120mm all black fans pre-installed at the front

SSD 4+1



HDD 2+2



Great capability with graphics card support up to 380mm, PSU support up to 220mm, air cooling support up to 165mm and 28mm cable management space up to 28mm



Easy cable management with cable management cabinet for clean build even behind motherboard tray

Transformable PCI E module for vertical GPU support

Easy clean with removable dust filters and both solid and mesh magnetic top covers

Full package functional accessories enable Dawn TG not only an unique build of aesthetics also a clean build with great capabilities

** SPECIFICATIONS:

Color	Black
Material	Steel, Plastic, 3 side tempered glass with automotive window security films
Motherboard Support	Mini-ITX, MicroATX, ATX, E-ATX up to 275mm(10.8inch)
E-ATX Motherboard Supports	305mm(12 inch) x 275mm(10.8inch)
Air Cooler Height Support	165mm(6.5inch)
VGA Length Support	380mm(15inch)
Cable Management Support (With Cable Management Cabinet)	up to 28mm(1.1inch)
5.25″ Drive Bay	0
3.5″ Drive Bay	2+2
2.5″ Drive Bay	4+1
Fan mounts(Front)	3 x 120mm or 2 x 140mm
Fan mounts(Top)	2 x 120mm or 2 x 140mm
Fan mounts(Rear)	1 x 120mm
Fan mounts(Bottom)	1 x 120mm
Pre-installed Fans(Front)	120mm Black Fan x2
Pre-installed Fans(Rear)	120mm Fan (+5V 3Pin ARGB) x1
Radiator Support(Front)	240mm x 1/ 280mm x 1/ 360mm x 1(Thickness up to 35mm/ width up to 141mm)
Radiator Support(Top)	240mm x 1 /280mm x 1
Radiator Support(Rear)	120mm x 1
PCI-E Slots (Transformable for Vertical GPU Support)	7 Slots
I/O Ports	2 x USB 3.0, Audio IO ,USB 3.1 Gen 2 Type-C x1
Power Supply	ATX & Standard / up to 220mm(8.7inch)
Dimensions (W x H x D)	220mm(8.7inch) x 485.5mm(19.1inch) x 449mm(17.7inch)
Weight	9.87kg
